Machined Aluminium Spacers with black zinc coating added for durability and styling. Fit for the BMW M5 G90 Saloon and G99 Touring.

Lightweight, durable and designed these set the stance on the car perfectly with improvement in performance handling and looks. Bimecc Spacers are an essential to any car build and look great by giving the impression of a lowered stance or when paired with a set of lowering springs.

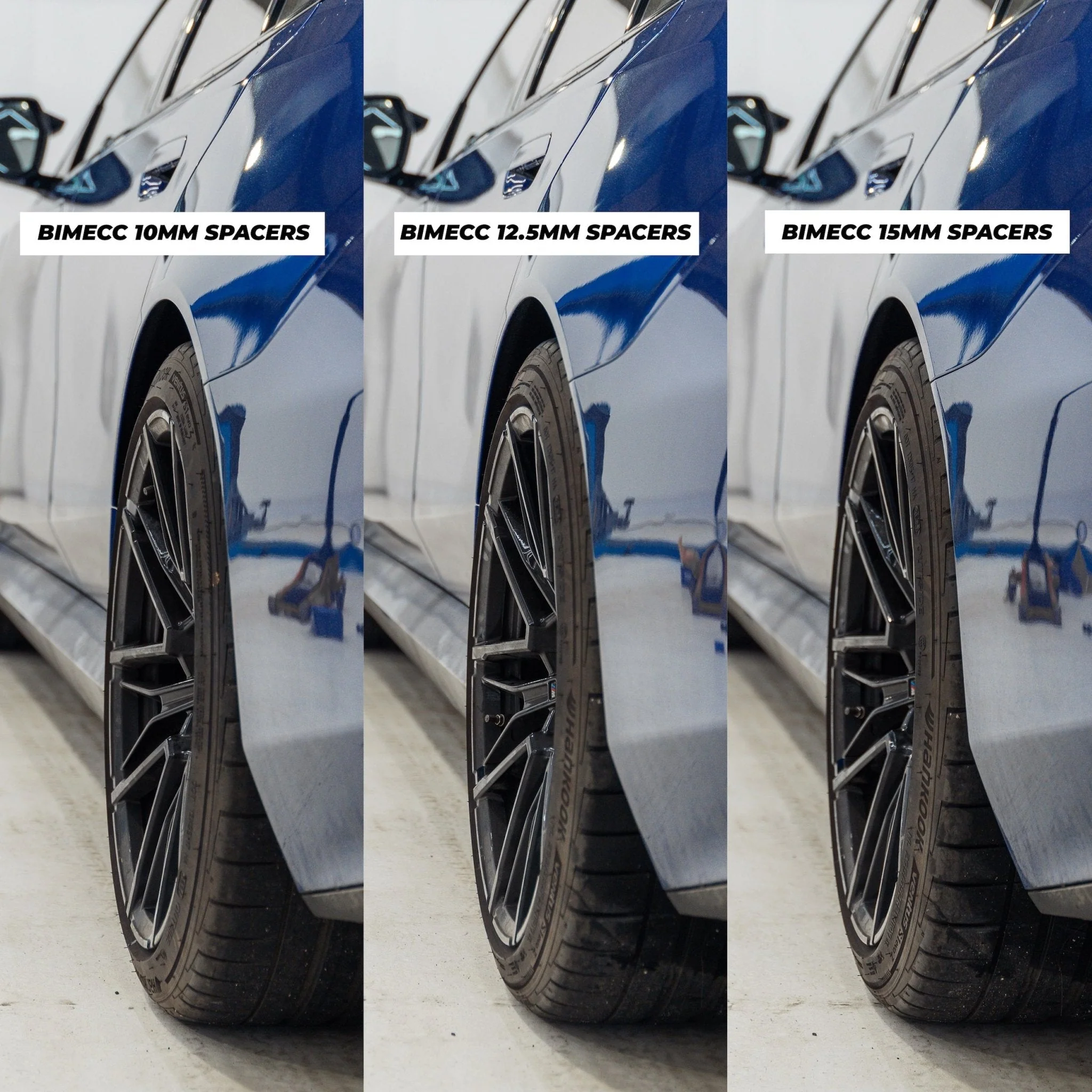

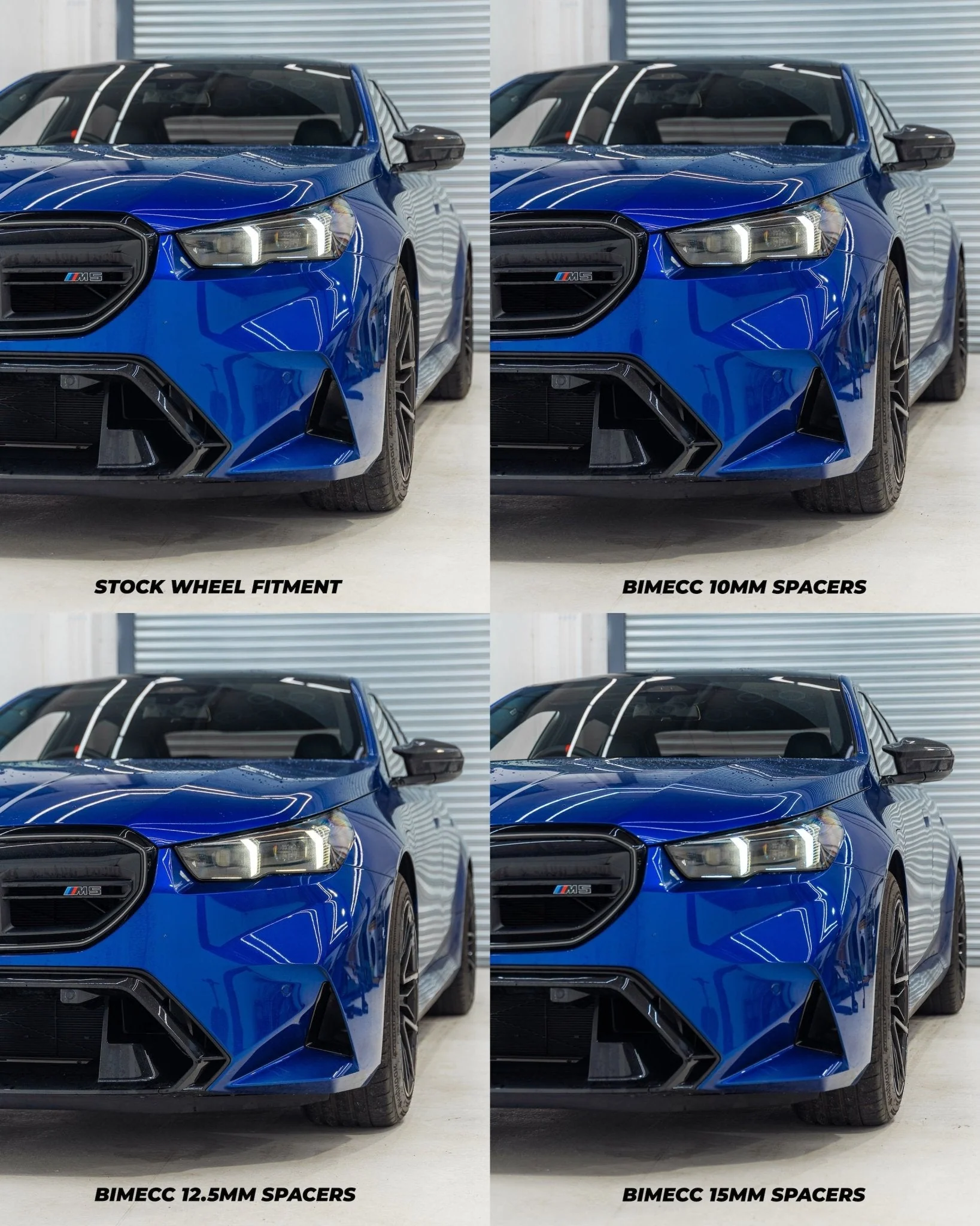

We tested these spacers out on our G90 M5 to find out which was the best option with a comparison between each size, click here or scroll down to see our wheel spacer guide.

When installing the wheel spacers on this car, it's essential to ensure that the hubs are completely clean. The precise fitment of the spacers provides a secure connection, but a clean hub is necessary for proper installation. Expect to apply some force during the process—this is entirely normal and guarantees a secure fit once installed.

-

Width Set Up Guides for the Vehicle:

Subtle
10mm Front / 10mm Rear

Flush
12.5mm Front / 12.5mm Rear

Aggressive
15mm Front / 15mm Rear

-

This Bimecc Wheel Spacer Kit comes with all 4 spacers and the bolts to fit; if you don't opt for Locking Wheel Bolts you will receive 20x Extended Black Bolts only.

If you do opt for the Locking Wheel Bolts, you will receive 16x Extended Black Bolts and 4x Locking Wheel Bolts and 1x Locking Wheel Key.

Sold in set of 4 spacers. Pick your desired sizes.
Spaces come in 3 sizes; 10mm , 12.5mm & 15mm.

NOTE: After installing wheel spacers, there’s a small possibility of rubbing on the car’s arch, especially if you choose an aggressive fitment and the vehicle is lowered. This can usually be avoided by selecting a conservative spacer size or making minor adjustments to the fender.

• 4 x Hub-centric Wheel Spacers

• 16 or 20 x Extended Black wheel bolts (depending on locking bolts option)
• 4 x Locking Wheel Bolts (optional)
• 1 x Locking Key (optional)

Specification

• 5x132 PCD

• 66.6 Centre Bore

• TÜV Approved

• 3 sizes available; 10mm, 12.5mm & 15mm.

• Bolts: 60-Deg Taper M14 x 1.25

TUV Certification

Bimecc products are produced under the certification of TUV ISO 9001 & TUV IATF 1969.

The wheel spacers are not TUV certified by vehicle application as required by law in some European states when modifying from standard.

Click here

 Compatible models

• BMW M5 Saloon (2024+, G90)

• BMW M5 Touring (2024+, G99)
